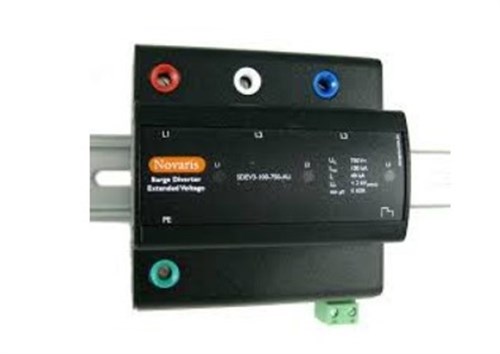

Novaris SDEV3-100-750-AU Surge Diverter 3 PH 100kA 750VAC Shunt IP20

Product Code: SDEV3-100-750-AU

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Surge Diverter
Brand NOVARIS
Series SDEV
Connection Type Shunt
Degree of Protection IP20
Height 95 mm
Length 70 mm
Mounting Type DIN Rail
Operational Temperature -40 to 70 deg C
Phase 3
Rated Current 100 kA (L-N)
Rated Voltage 750 VAC (L-N)
Standards and Approvals IEC 61643-1, AS/NZS 1768, IEEE C62.41, UL1449
Voltage Protection Level <1.4 kA (L-N)
Weight 570 g
Width 90 mm

Documents

IPD Product Catalogue V17
NOVARIS Datasheet
Manual

CAD Blocks & Dimensions
