Specifications

Product Type	High voltage surge diverter
Brand	Novaris
Series	SDH
Application	Power, Airport Runway Infrastructure, Constant Current Regulators
Connection Type	Shunt
Lightning Impulse Current Iimp (10/350µs)	12.5 kA
Max. Backup Fuse	63 A
Max. Continuous Operating Voltage (AC/DC)	1500 V AC
Modes of Protection	L-PE
Rated Current	100 kA
Rated Voltage	1500 VAC
Response Time	<5 ns
Voltage Protection Level Up	<3800 V
Max. Discharge Current Imax (8/20µs)	100 kA
Nominal Discharge Current Inom (8/20µs)	40 kA
Colour	Blue
Material	ABS, Ceramic
Mounting Method	GEC RSL63H mounting
Mounting Type	Fuse Base
Terminal Size	25 mm2
Tightening Torque	2.5 N-m
Depth	162 mm
Height	214 mm
Weight	2 kg
Width	57 mm
Humidity	5-95%
Operating Temperature	-40°C to 85°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11 Class I, AS/NZS 1768 Category C, IEEE C62.41 Category C

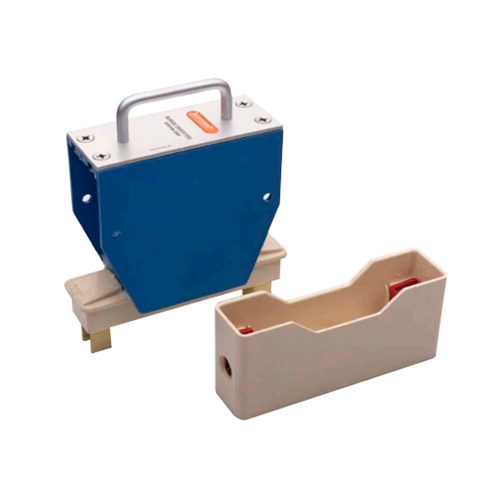

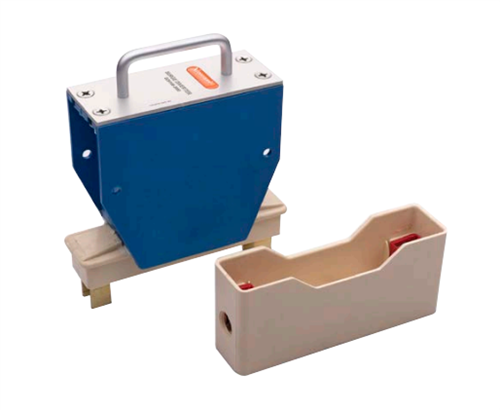

Novaris SDH-100-1500-H High Voltage Surge Diverter 100kA 1500VAC Shunt Fuse Base Mount ABS IP20
