Specifications

Product Type	surge diverters
Brand	Novaris
Series	SDH
Application	Aviation runway lighting, mining, industrial processing and railway industries
Connection Type	Shunt
Lightning Impulse Current Iimp (10/350µs)	12.5kA
Max. Backup Fuse	63A
Max. Continuous Operating Voltage (AC/DC)	2000V
No. of Poles (Total)	1
Modes of Protection	L-PE
Rated Current	100 kA
Rated Voltage	2000 VAC
Nominal Voltage	275V AC/DC
Nominal Discharge Current (8/20µs)	40kA
Response Time	<5 ns
Voltage Protection Level Up	<4800V
Max. Discharge Current Imax (8/20µs)	100kA
Nominal Discharge Current Inom (8/20µs)	40kA
No. of Poles	1
Colour	Blue
Material	ABS, Ceramic
Mounting Method	Red Spot HRC fuse base
Mounting Type	GEC RSL63PH
Terminal Size	25mm²
Tightening Torque	2.5 N-m
Depth	162 mm
Height	215 mm
Weight	2 kg
Width	57 mm
Humidity	5-95%
Operating Temperature	-40°C - 85°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11 Class I, AS/NZS 1768 Category C, IEEE C62.41 Category C

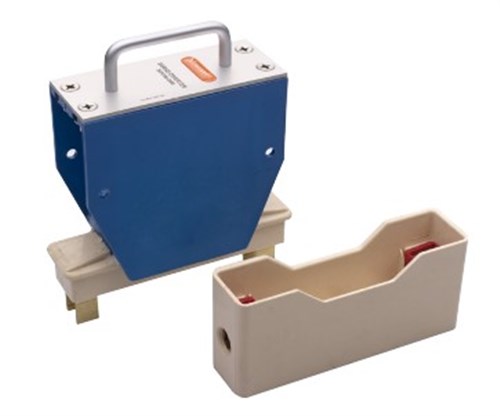

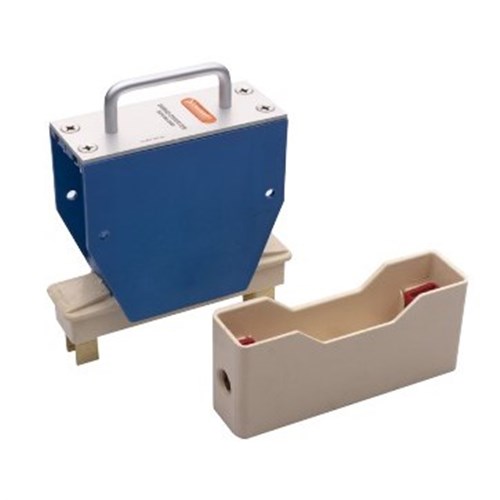

Novaris SDH-100-2000-PH High Voltage Surge Diverter 100kA 2000VAC Shunt 57mm W 162mm D ABS Ceramic Blue IP20
