Specifications

Product Type	High Voltage Surge Diverter With Alarm
Brand	NOVARIS
Connection Type	Shunt
Modes of Protection	L-PE
Rated Current	200 kA
Rated Voltage	1000 VAC
Response Time	<5 ns
Voltage Protection Level Up	2.6 kV
Colour	Blue
Material	ABS, Ceramic
Mounting Type	Fuse Base
Tightening Torque	2.5 N-m
Depth	162 mm
Height	214 mm
Weight	2 kg
Width	57 mm
Humidity	5-95%
Operating Temperature	-40 to 70 deg C
IP Rating	IP20
Standards and Approvals	IEC 61643-11 Class I, AS/NZS 1768 Category C, IEEE C62.41 Category C

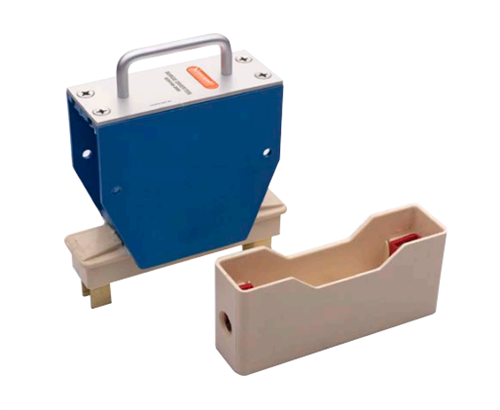

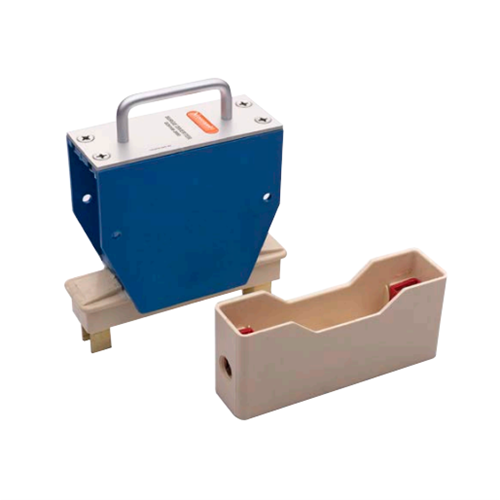

Novaris SDH-200-1000-AP High Voltage Surge Diverter With Alarm 200kA 1000VAC Shunt Fuse Base Mount ABS IP20
