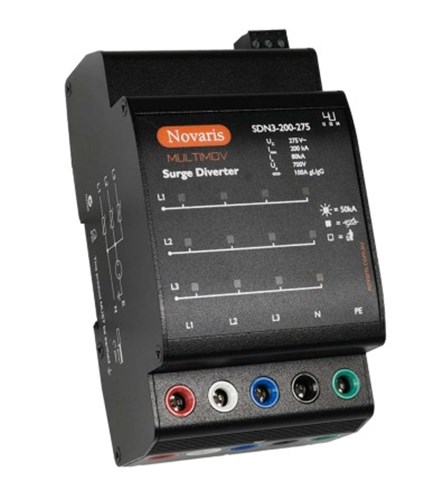

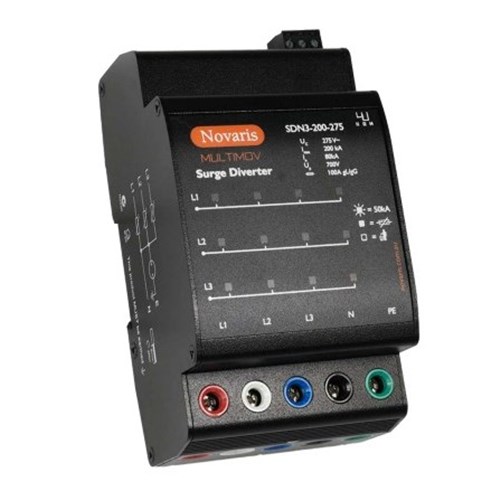

Novaris SDN3-200-275 Surge Diverter 25kA 30kA 3 PH 200kA 150kA 275VAC 255VAC IP20

Product Code: SDN3-200-275

1

Specifications

Product Type	Surge Diverter
Brand	NOVARIS
Series	SDN
Connection Type	Shunt
Degree of Protection	IP20
Depth	69 mm
Height	141 mm
Lightning Impulse Current	25 kA (L-N), 30 kA (N-PE)
Mounting Type	DIN Rail
Operational Temperature	-40 to 70 deg C
Phase	3
Rated Current	200 kA (L-N), 150 kA (N-PE)
Rated Voltage	275 VAC (L-N), 255 VAC (N-PE)
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Voltage Protection Level	<1.5 kV (L-N)
Width	80 mm
