Specifications

Product Type	Compact DIN Surge Filter
Brand	NOVARIS
Series	SFD-C
Degree of Protection	IP20
Humidity	5-95%
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail
Operational Temperature	-40 to 85 deg C
Phase	1
Rated Current	2 kA (Power Line), 20 kA (Signal Line)
Rated Short Circuit Current	2 A
Rated Voltage	24 VAC
Standards and Approvals	IEC 61643-1 Class II, III, AS/NZS 1768 Category A, B, IEEE C62.41 Category A, B, IEC 1000-4-5, UL1499 Third Edition
Tightening Torque	0.5 N-m
Voltage Protection Level	<50 V
Weight	300 g

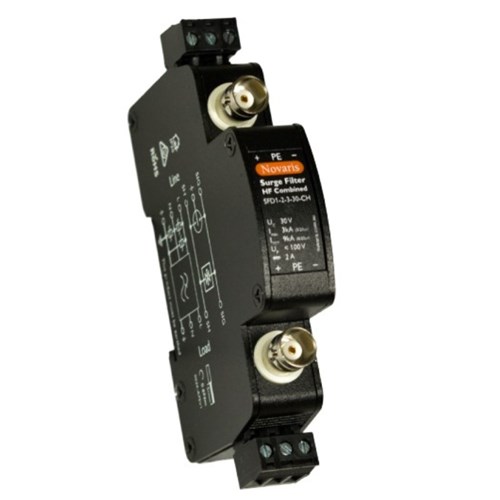

Novaris SFD1-2-2-30-C Compact DIN Surge Filter 1 PH 2kA 20kA 24VAC TS35 IP20
