Specifications

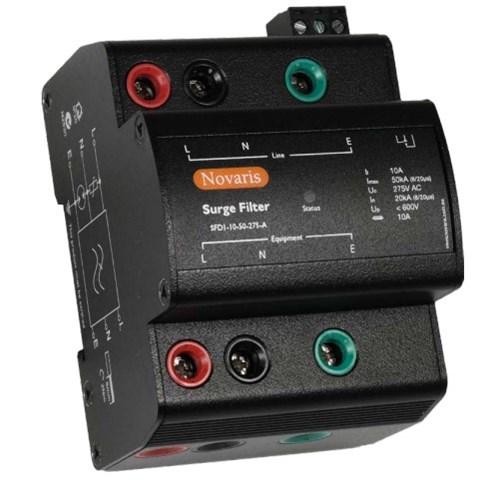

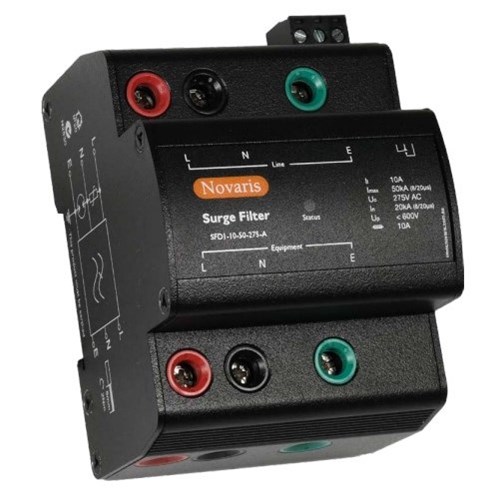

Product Type	Single Phase Surge Filter
Brand	Novaris
Series	SFD1
Application	Power, Control Cabinets and Final Sub Boards
Lightning Impulse Current Iimp (10/350µs)	12.5 kA
Max. Backup Fuse	32 A
Max. Continuous Operating Voltage (AC/DC)	275 V AC
Max. Load Current	32 A
No. of Phases	1
Breaking Capacity	100 A
Modes of Protection	L-N, L-PE, N-PE
Rated Current	32 A
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Response Time	<100 ns (N-PE)
Voltage Protection Level Up	2000 V
Max. Discharge Current Imax (8/20µs)	100 kA
Short Circuit Current Rating	25 kA
Nominal Discharge Current Inom (8/20µs)	40 kA
Display	LED Status
Material	Metal
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail, Panel
Terminal Size	16 mm2
Tightening Torque	0.5 N-m, 2 N-m
Depth	95 mm
Height	69 mm
Length	115 mm
Weight	750 g
Width	108 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
