Specifications

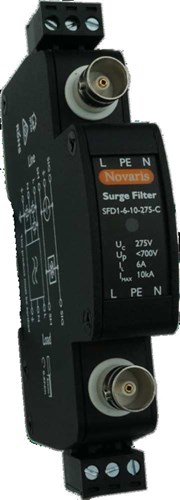

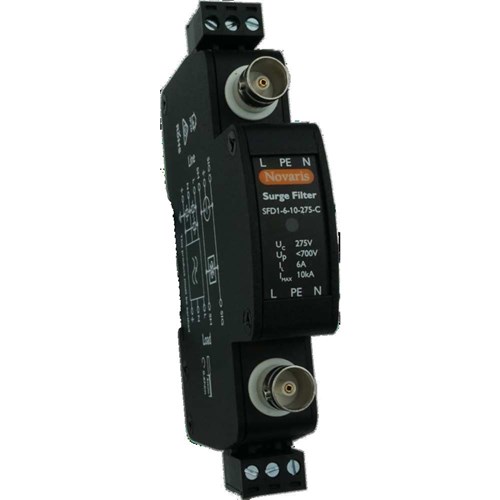

Product Type	SFD1 Combined CCTV Protection
Brand	Novaris
Series	SFD-C
Application	Signal, Network and CCTV
Connection Type	Series
Max. Backup Fuse	6 A
Max. Continuous Operating Voltage (AC/DC)	275 V AC
Max. Load Current	6 A
No. of Phases	1
Modes of Protection	L-N, L-PE, N-PE
Rated Current	10 kA Power, 20 kA Signal
Rated Frequency	50/60 Hz
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Voltage Protection Level Up	900 V
Max. Discharge Current Imax (8/20µs)	10 kA
Short Circuit Current Rating	10 kA
Nominal Discharge Current Inom (8/20µs)	4 kA
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	2.5 mm2
Tightening Torque	0.5 N-m
Depth	115 mm
Height	69 mm
Weight	200 g
Width	18 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
