Specifications

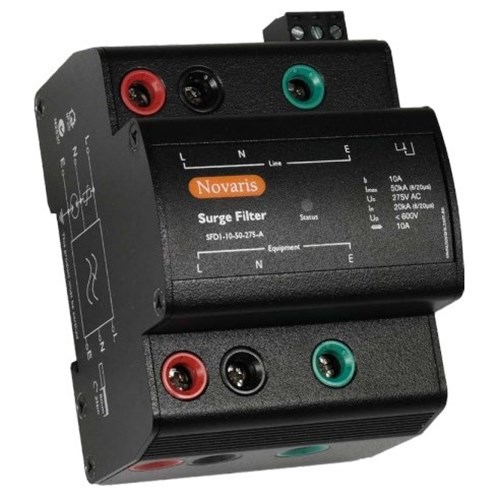

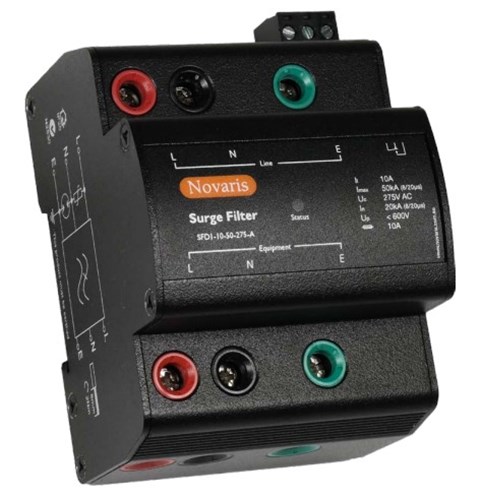

Product Type	Surge Diverter
Brand	Novaris
Series	SFD1
Application	Critical installations, sensitive electronics and computer equipment with single phase loads up to 32A
Max. Backup Fuse	6A
Max. Continuous Operating Voltage (AC/DC)	275VAC (L-N)255VAC (N-PE)
No. of Poles (Total)	1
Nominal Voltage	230V
Nominal Discharge Current (8/20µs)	4kA (L-N)4kA (N-PE)
Voltage Protection Level Up	<1200V
Maximum Discharge Current Imax (8/20µs)	10kA
Mounting Method	DIN Rail
Terminal Size	2.5 mm²
Depth	115 mm
Height	69 mm
Width	18 mm
Operating Temperature	-40°C - 70°C
IP Rating	IP20
