Specifications

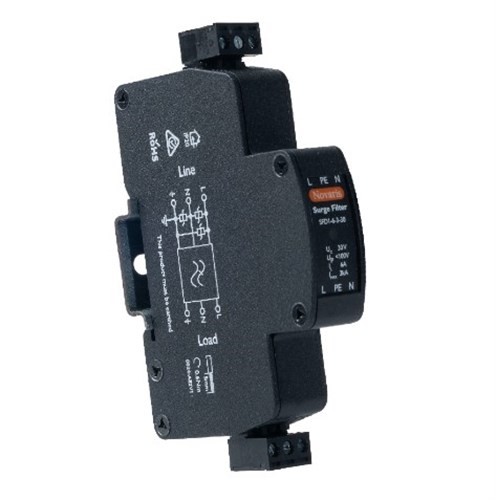

Product Type	Surge Filter
Brand	NOVARIS
Series	SFD1
Degree of Protection	IP20
Display Type	LED Power and Thermal Failure
Fuse Rating	6 A
Height	69 mm
Humidity	5-95%
Length	115 mm
Lightning Impulse Current	3 kA (L-N), 15 kA (N-PE)
Material	Aluminium
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	6 A
Rated Short Circuit Current	3 kA
Rated Voltage	24 VAC
Response Time	<100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Tightening Torque	0.5 N-m
Voltage Protection Level	<80V (L-N), <80V (N-PE)
Weight	140 g
Width	18 mm
