Specifications

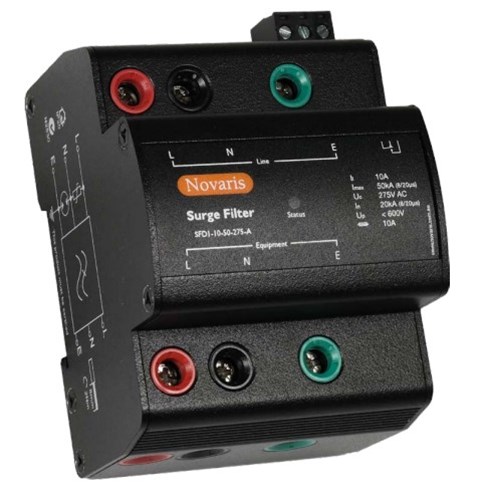

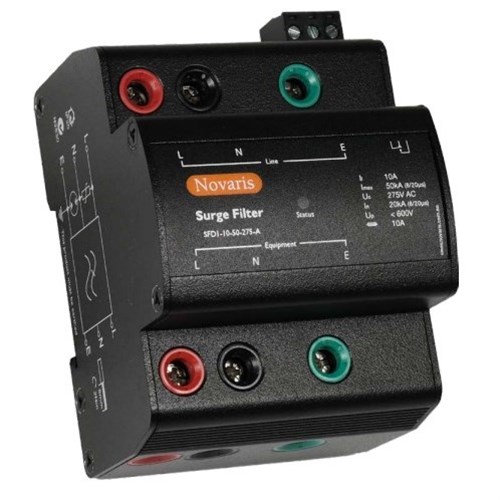

Product Type	Compact DIN Surge Filter
Brand	NOVARIS
Series	SFD1
Connection Type	Shunt
Degree of Protection	IP20
Depth	54 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	6 A
Height	95 mm
Humidity	5-95%
Lightning Impulse Current	6.5 kA (L-N), 2 kA (N-PE)
Material	Aluminium
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail
Number of Poles	1
Number of Ports	2
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	50 kA (L-N), 25 kA (N-PE)
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Response Time	<100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, IEEE 62.41.2:2002, UL 1449 3rd Edition
Tightening Torque	2 N-m
Voltage Protection Level	<0.6 kA (L-N)
Weight	440 g
Width	69 mm
