Specifications

Product Type	Surge Filter With Floating Earth
Brand	NOVARIS
Connection Type	Series
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Thermal Failure
Height	69 mm
Humidity	5-95%
Material	Aluminium
Modes of Protection	L-L, L-PE
Mounting Type	TS35 DIN Rail
Operational Temperature	-40 to 70 deg C
Phase	2
Rated Current	10 A
Rated Voltage	230 VAC
Response Time	<100 ns (L-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Voltage Protection Level	<600V (L-L)
Weight	850 g
Width	118 mm

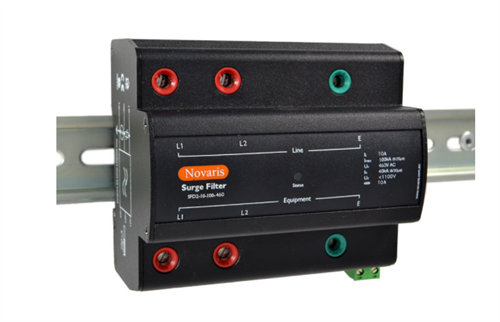

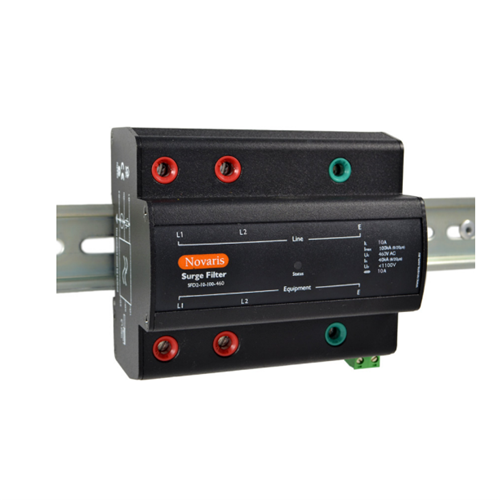

Novaris SFD2-10-100-275-A Surge Filter With Floating Earth 2 PH 10A 230VAC TS35 Aluminium IP20
