Specifications

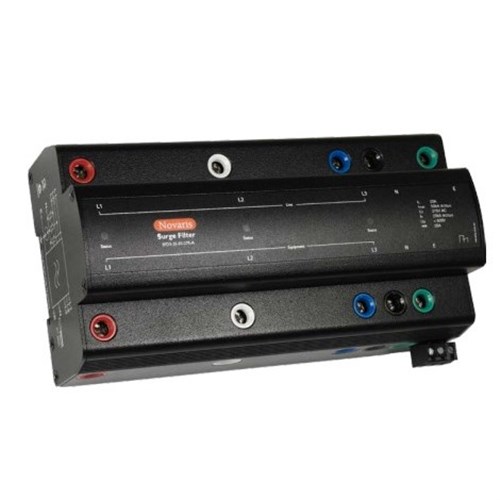

Product Type	Three Phase Surge Filter
Brand	Novaris
Series	SFD3
Application	Power, Control Cabinets and Final Sub Boards
Connection Type	Series
Lightning Impulse Current Iimp (10/350µs)	6.25 kA
Max. Backup Fuse	20 A
Max. Continuous Operating Voltage (AC/DC)	275 V AC
Max. Load Current	20 A
No. of Phases	3
Modes of Protection	L-N, L-PE, N-PE
Rated Current	50 kA (L-N), 60 kA (N-PE)
Rated Voltage	275 VAC (L-N), 255 VAC (N-PE)
Nominal Voltage	230 V AC
Voltage Protection Level Up	1000 V
Max. Discharge Current Imax (8/20µs)	50 kA
Short Circuit Current Rating	25 kA
Alarm Contact	SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)	20 kA
Mounting Method	TS35 DIN Rail
Mounting Type	DIN Rail
Terminal Size	16 mm2
Depth	95 mm
Height	69 mm
Width	180 mm
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
