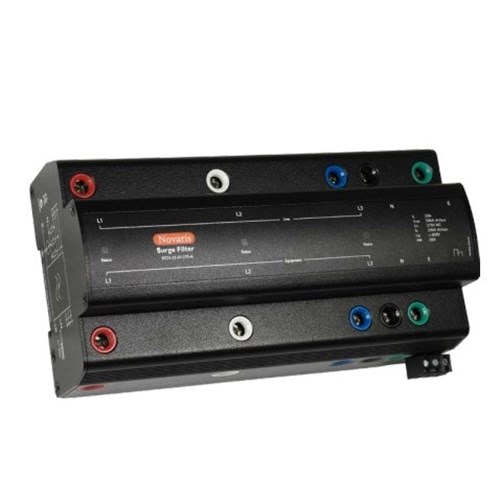

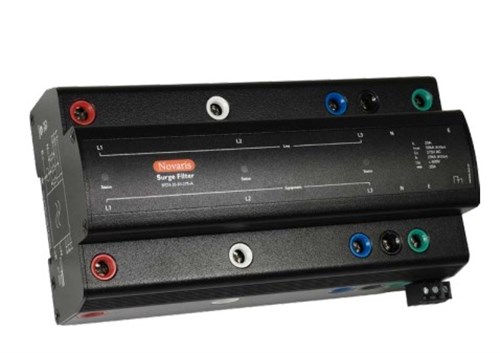

Novaris SFD3-32-50-275-A Surge Filter 6.25kA 15kA 3 PH 50kA 60kA 275VAC 255VAC IP20

Product Code: SFD3-32-50-275-A

1

Specifications

Product Type	Surge Filter
Brand	NOVARIS
Series	SFD3
Connection Type	Series
Degree of Protection	IP20
Height	69 mm
Length	95 mm
Lightning Impulse Current	6.25 kA (L-N), 15 kA (N-PE)
Mounting Type	DIN Rail
Operational Temperature	-40 to 70 deg C
Phase	3
Rated Current	50 kA (L-N), 60 kA (N-PE)
Rated Short Circuit Current	32 A
Rated Voltage	275 VAC (L-N), 255 VAC (N-PE)
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Voltage Protection Level	<1 kV (L-N), <1.5 kV (N-PE)
Weight	1.5 kg
Width	180 mm

Documents

IPD Product Catalogue V17

Manual

CAD Blocks & Dimensions

Dimensions

Dimensions

Dimensions
