Specifications

Product Type	Surge Filter
Brand	NOVARIS
Connection Type	Series
Instantaneous Protection Adjustment Range	1600 A
No. of Phases	3
Contact Configuration	SPDT
Modes of Protection	L-N, L-PE, N-PE
Rated Current	200 kA
Rated Frequency	50 Hz
Rated Voltage	230 VAC
Voltage Protection Level Up	<360 V
Display	7-Segment LED, Percentage Active
Mounting Type	Wall
Tightening Torque	0.5 N-m
Depth	340 mm
Height	700 mm
Weight	120 g
Width	1300 mm
Humidity	5 to 95%
Operating Temperature	-40 to 70 deg C
IP Rating	IP55
Standards and Approvals	IEC 61643-11 Class I, II, III, AS/NZS 1768 Category C, B, A, IEEE C62.41 Category C, B, A, UL1449 Fourth Edition

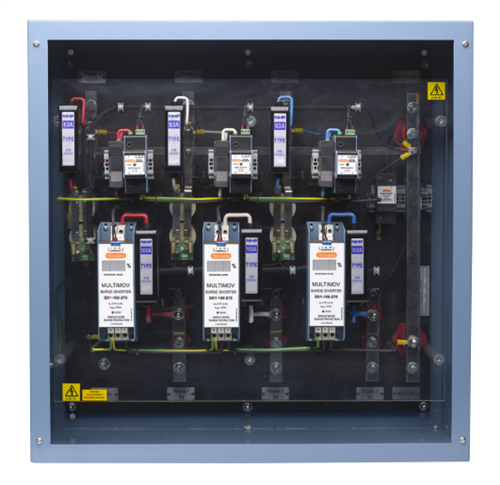

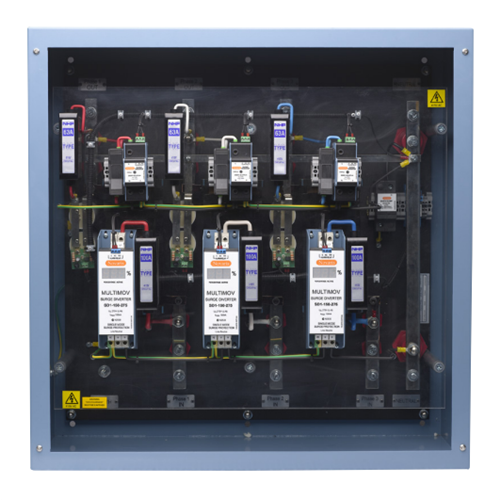

Novaris SFH3-1600-200-275 Surge Filter 3 PH 200kA 230VAC 50Hz Wall Mount IP55
