Specifications

Product Type	High Current Filter
Brand	Novaris
Series	SFH3 (160A-400A)
Application	Power, Main Switchboards, Critical Installations more than 125A per phase
Connection Type	Series
Lightning Impulse Current Iimp (10/350µs)	25 kA
Max. Backup Fuse	250 A
Max. Continuous Operating Voltage (AC/DC)	275 V AC
Max. Load Current	250 A
No. of Phases	3
Contact Configuration	SPDT
Modes of Protection	L-N, L-PE, N-PE
Rated Current	200 kA
Rated Frequency	50 Hz
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Voltage Protection Level Up	360 V
Max. Discharge Current Imax (8/20µs)	200 kA
Short Circuit Current Rating	50 kA
Alarm Contact	SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)	80 kA
Display	7-Segment LED, Percentage Active
Mounting Method	Panel
Mounting Type	Wall
Terminal Size	M10
Tightening Torque	0.5 N-m
Depth	285 mm
Height	710 mm
Weight	90 kg
Width	710 mm
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11 Class I, II, III, AS/NZS 1768 Category C, B, A, IEEE C62.41 Category C, B, A, IEC 1000-4-5, UL1449 Fourth Edition

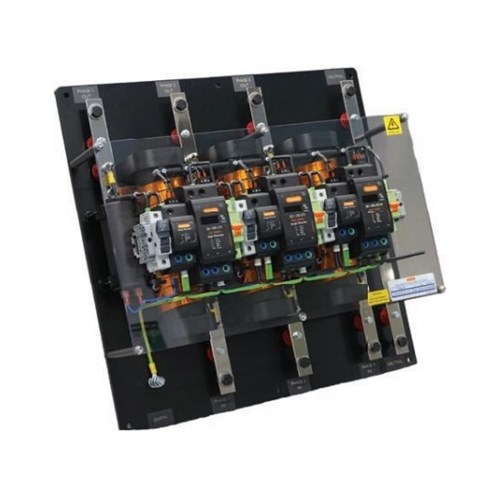

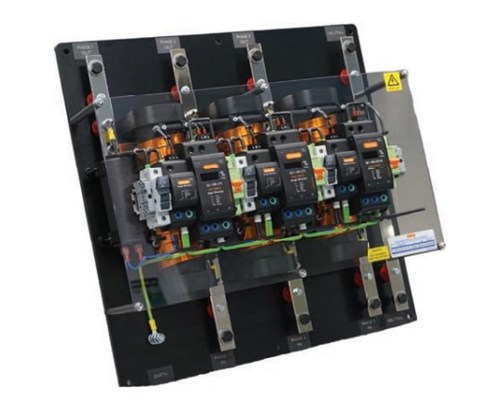

Novaris SFH3-250-200-275 Surge Filter 3 PH 200kA 230VAC 50Hz Wall Mount IP55
