Specifications

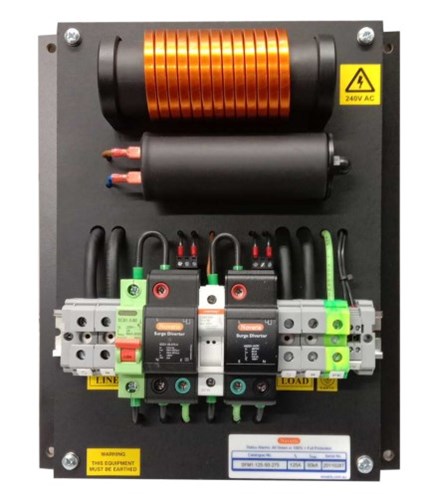

Product Type	3-Stage Surge Filter
Brand	NOVARIS
Series	SFM1
Connection Type	Series
Degree of Protection	IP20
Depth	110 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	125 A
Height	344 mm
Humidity	5-95%
Lightning Impulse Current	6.25 kA (L-N)
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	Panel
Number of Ports	2
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	50 kA (L-N)
Rated Short Circuit Current	50 kA
Rated Voltage	230 VAC
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007
Tightening Torque	0.5 N-m, 1 N-m
Voltage Protection Level	<3.6 kA (L-N)
Weight	11 kg
Width	284 mm
