Specifications

Product Type	Surge Filter
Brand	NOVARIS
Connection Type	Series
Lightning Impulse Current Iimp (10/350µs)	25 kA
No. of Phases	3
Communication Ports	2
Modes of Protection	L-N, L-PE, N-PE
Rated Current	40 A
Rated Short Circuit Current	50 kA
Rated Voltage	230 VAC
Voltage Protection Level Up	450 V
Display	LED Power and Thermal Failure
Mounting Type	Panel
Depth	182 mm
Height	450 mm
Weight	24 kg
Width	390 mm
Humidity	5-95%
Operating Temperature	-40 to 70 deg C
IP Rating	IP20
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007

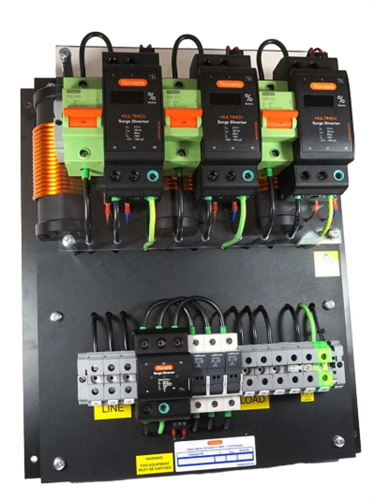

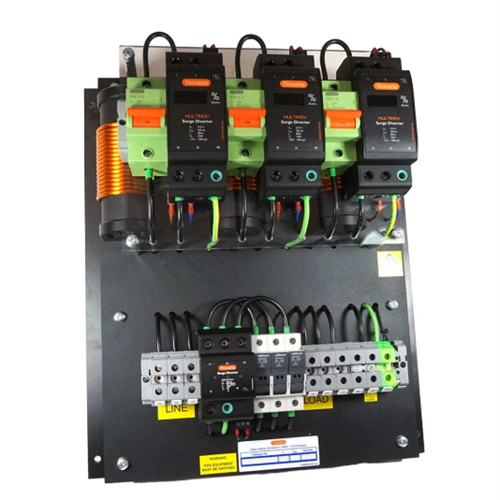

Novaris SFM3-40-200-275-M Surge Filter 25kA 3-P 3 PH 40A 230VAC Panel Mounting IP20
