Specifications

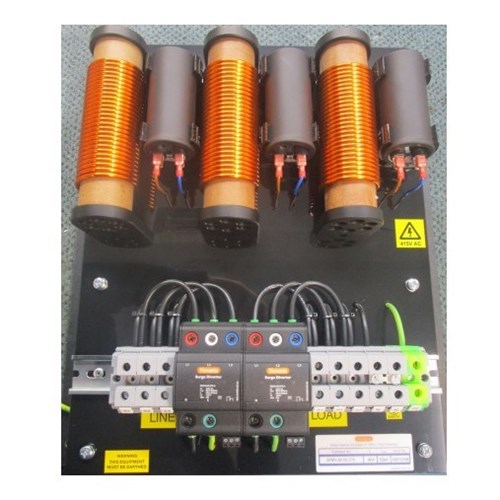

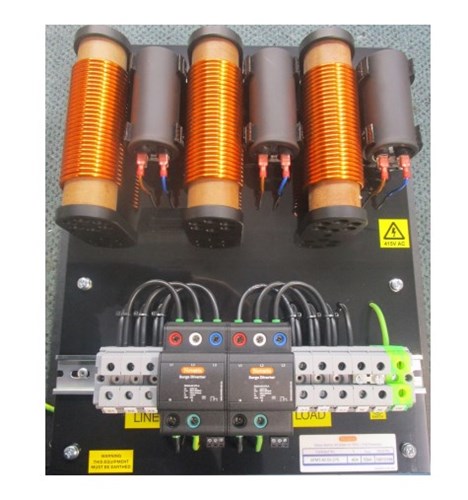

Product Type	Medium Current Filter
Brand	Novaris
Series	SFM3 (40A-125A)
Application	Power, Distribution Boards and Domestic MSB, Critical Installations up to 125A per phase
Connection Type	Series
Lightning Impulse Current Iimp (10/350µs)	6.25 kA
Max. Backup Fuse	40 A
Max. Continuous Operating Voltage (AC/DC)	275 V AC
Max. Load Current	40 A
No. of Phases	3
Communication Ports	2
Modes of Protection	L-N, L-PE, N-PE
Rated Current	40 A
Rated Short Circuit Current	50 kA
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Voltage Protection Level Up	360 V
Max. Discharge Current Imax (8/20µs)	50 kA
Short Circuit Current Rating	50 kA
Alarm Contact	SPST NC power and thermal failure
Nominal Discharge Current Inom (8/20µs)	20 kA
Display	LED Power and Thermal Failure
Mounting Method	Panel
Mounting Type	Panel
Terminal Size	35 mm2
Depth	106 mm
Height	450 mm
Weight	24 kg
Width	390 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007
