Specifications

Product Type	Spark Gap Surge Diverter
Brand	Novaris
Series	SG1
Application	Power, Main Switchboards, Commercial and Industrial (Highly Exposed)
Connection Type	Shunt
Lightning Impulse Current Iimp (10/350µs)	50 kA
Max. Backup Fuse	500 A
Max. Continuous Operating Voltage (AC/DC)	275 V AC
No. of Phases	1
Communication Ports	1
Modes of Protection	L-N, N-PE
Rated Current	150 kA
Rated Short Circuit Current	10 kA
Rated Voltage	275 VAC
Nominal Voltage	230 V AC
Response Time	100 ns
Voltage Protection Level Up	1300 V
Max. Discharge Current Imax (8/20µs)	150 kA
Short Circuit Current Rating	25 kA
Alarm Contact	SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)	50 kA
Material	Polycarbonate
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	35 mm2
Depth	91 mm
Height	67 mm
Weight	500 g
Width	36 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20

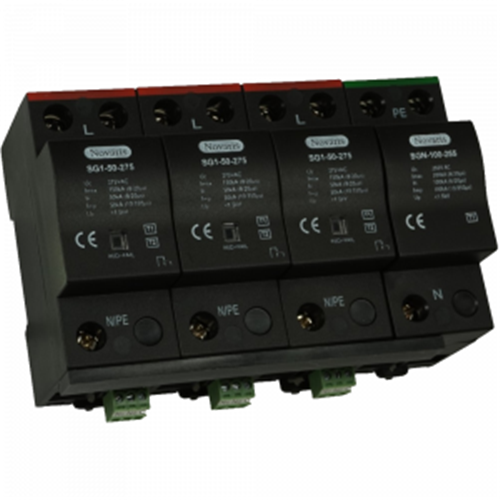

Novaris SG1-50-275 Spark Gap Surge Diverter 1 PH 150kA 275VAC Shunt TS35 Polycarbonate IP20
