Specifications

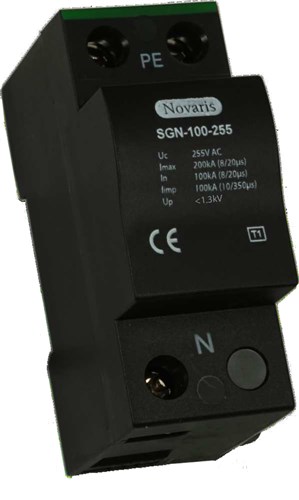

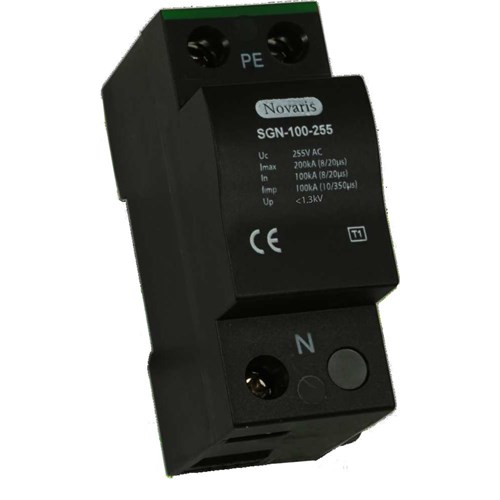

Product Type	Spark Gap Surge Diverter
Brand	Novaris
Series	SG1
Application	Power, Main Switchboards, Commercial and Industrial (Highly Exposed)
Connection Type	Shunt
Lightning Impulse Current Iimp (10/350µs)	100 kA
Max. Backup Fuse	500 A
Max. Continuous Operating Voltage (AC/DC)	255 V AC
Modes of Protection	N-PE
Rated Voltage	255 VAC
Nominal Voltage	230 V AC
Nominal Discharge Current (8/20µs)	50 kA
Voltage Protection Level Up	1500 V
Max. Discharge Current Imax (8/20µs)	150 kA
Short Circuit Current Rating	50 kA
Nominal Discharge Current Inom (8/20µs)	100 kA
Colour	Textured Black
Material	Thermoplastic
Mounting Method	TS35 DIN Rail
Terminal Size	35 mm2
Depth	91 mm
Height	67 mm
Weight	230 g
Width	36 mm
Operating Temperature	-40°C to 70°C
IP Rating	IP20
