Specifications

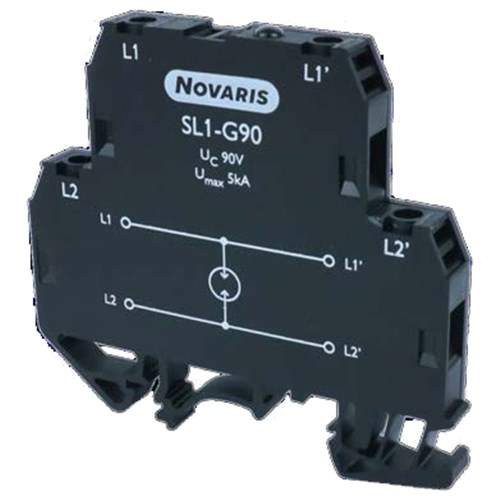

Product Type	SL1-G Signal Surge Protector
Brand	Novaris
Series	SL1
Application	Signal, Process Control, Input/Output/Comms
Connection Type	Screw Cage
No. of Lines/Pairs	1 line
Modes of Protection	Transverse and Common Modes
Rated Current	5 kA
Rated Voltage	90 VDC
Response Time	<5 ns
Voltage Protection Level Up	450 V
Max. Discharge Current Imax (8/20µs)	5 kA
Max. Continuous Operating Voltage (DC)	60 V DC
Max. Continuous Operating Voltage (AC)	90 V AC
Material	Polyamide PA66
Mounting Method	Universal TS32 and TS35 rail
Mounting Type	Universal TS32/TS35 Rail
Terminal Size	2.5 mm2
Depth	68 mm
Height	62 mm
Weight	25 g
Width	6 mm
Operating Temperature	-25°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-21
