Specifications

Product Type	SL1-T Signal Surge Protector
Brand	Novaris
Series	SL1
Application	Signal, Process Control, Input/Output/Comms
Connection Type	Screw Cage
Lightning Impulse Current Iimp (10/350µs)	1.25 kA
No. of Lines/Pairs	1 line
Modes of Protection	Transverse and Common Modes
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Voltage	34 VDC
Response Time	<5 ns
Voltage Protection Level Up	50 V
Max. Discharge Current Imax (8/20µs)	5 kA
Max. Continuous Operating Voltage (DC)	34 V DC
Max. Continuous Operating Voltage (AC)	24 V AC
Material	Polyamide PA66
Mounting Method	Universal TS32 and TS35 rail
Mounting Type	Universal TS32/TS35 Rail
Terminal Size	2.5 mm2
Depth	68 mm
Height	62 mm
Weight	25 g
Width	6 mm
Operating Temperature	-25°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-21

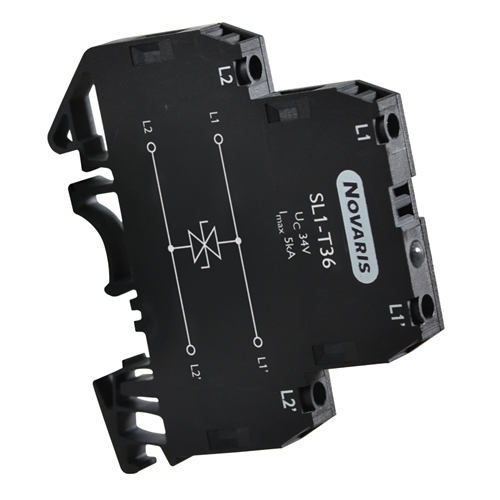

Novaris SL1-T36 Slimline Signal Line Protector 5kA 10kA 34VDC Screw Cage Universal TS32/TS35 Rail Mount 62mm H IP20
