Specifications

Product Type	Slimline Signal Line Protector
Brand	NOVARIS
Series	SL
Connection Type	Series
No. of Lines/Pairs	1
Modes of Protection	Transverse and Common Modes
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Voltage	16 VDC
Line Resistance	8.2 Ohm
Response Time	<5 ns
Voltage Protection Level Up	30 V
Material	Polycarbonate
Mounting Type	TS35 DIN Rail
Tightening Torque	0.5 N-m
Depth	68 mm
Height	102 mm
Weight	35 g
Width	7.5 mm
Humidity	5-95%
Operating Temperature	-55 to 70 deg C
IP Rating	IP20
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1499 3rd Edition and UL 497B, ITU-T K.44: 2012, AS/CA S008:2010, AS/NZS 4117:1999

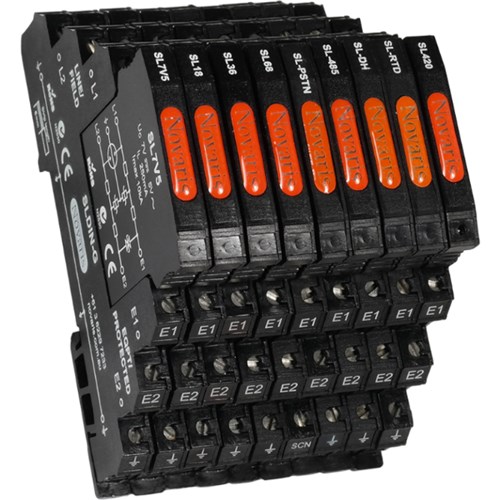

Novaris SL18 Slimline Signal Line Protector 5kA 10kA 16VDC TS35 102mm H IP20
