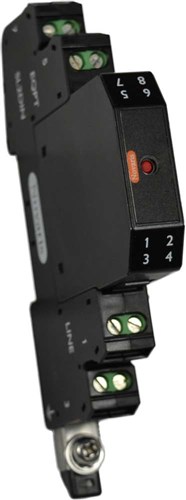

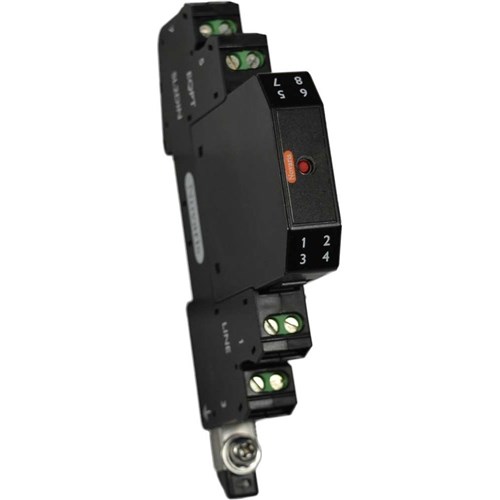

Novaris SL2-485-EC90 Surge Protection 10kA 20kA 8VDC Screw Cage TS35 IP20

Product Code: SL2-485-EC90

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Surge Protection
Brand NOVARIS
Series SL2
Connection Type Screw Cage
No. of Lines/Pairs 1 pair
Modes of Protection Transverse and Common Modes
Rated Current 10 kA (Per Line), 20 kA (Common Mode)
Rated Voltage 8 VDC
Line Resistance 3.9 Ohm
Response Time <5 ns
Voltage Protection Level Up 35 V
With Base EC90 Indirect Earthing
Housing Material Polycarbonate
Material Polycarbonate
Mounting Type TS35 DIN Rail
Tightening Torque 0.5 N-m
Depth 110 mm
Height 71 mm
Weight 70 g
Width 12 mm
Humidity 5-95%
Operating Temperature -40 to 70 deg C
IP Rating IP20
Standards and Approvals IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117, AS7708
