Specifications

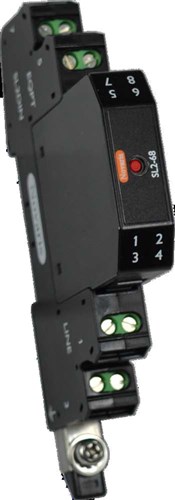

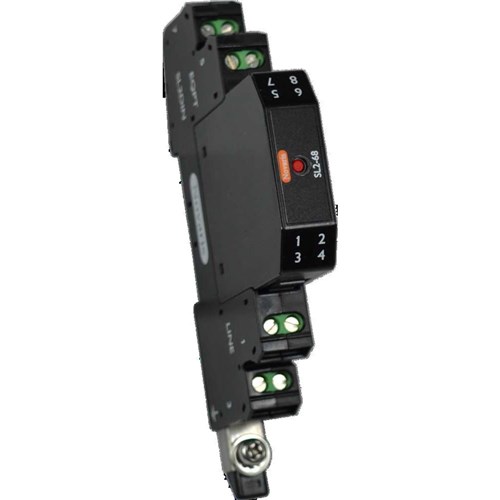

Product Type	Signal Surge Protection With Base and Alarm Output
Brand	NOVARIS
Connection Type	Screw Cage
No. of Lines/Pairs	1 pair
Modes of Protection	Transverse and Common Modes
Rated Current	10 kA (Per Line), 20 kA (Common Mode)
Rated Voltage	65 VDC
Terminal Type	Screw cage
Line Resistance	3.9 Ohm
Response Time	<5 ns
Voltage Protection Level Up	80 V
Material	Polycarbonate
Mounting Type	TS35 DIN Rail
Tightening Torque	0.5 N-m
Depth	110 mm
Height	71 mm
Weight	70 g
Width	12 mm
Humidity	5-95%
Operating Temperature	-40 to 70 deg C
IP Rating	IP20
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117, AS7708
