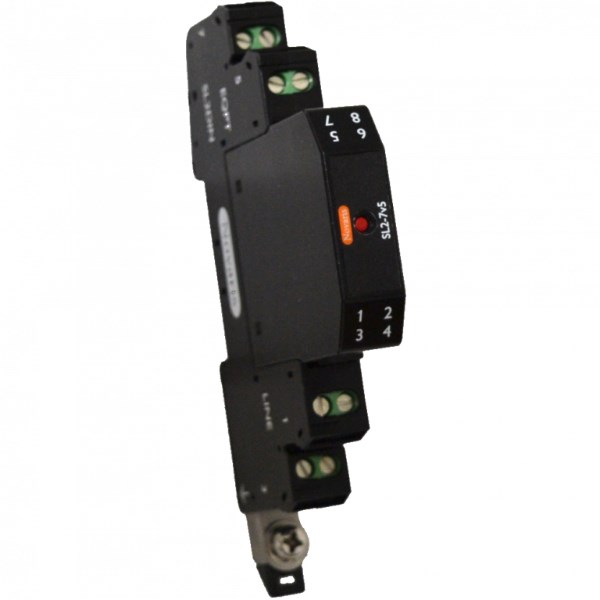

Novaris SL2-7V5-EC90 Surge Protection 10kA 20kA 7VDC Screw Cage TS35 IP20

Product Code: SL2-7V5-EC90

1

Specifications

Product Type	Surge Protection
Brand	NOVARIS
Series	SL2
Base Type	EC90 Indirect Earthing
Capacitance	32 pF
Connection Type	Screw Cage
Degree of Protection	IP20
Depth	110 mm
Height	71 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-40 to 70 deg C
Rated Current	10 kA (Per Line), 20 kA (Common Mode)
Rated Voltage	7 VDC
Resistance	3.9 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117, AS7708
Tightening Torque	0.5 N-m
Voltage Protection Level	15 V
Weight	70 g
Width	12 mm
