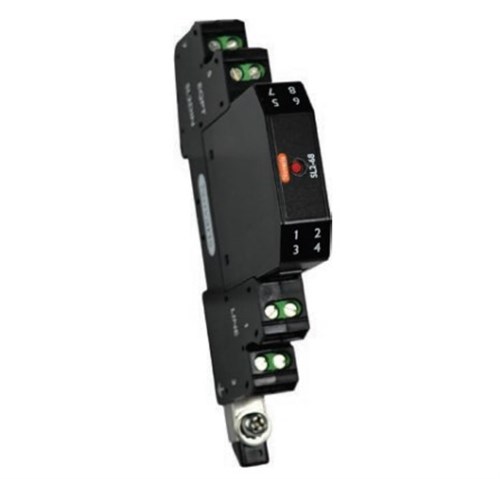

Novaris SL2-PSTN Signal Surge Protection 10kA 20kA 180VDC Screw Cage TS35 IP20

Product Code: SL2-PSTN

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Signal Surge Protection
Brand NOVARIS
Capacitance 32 pF
Connection Type Screw Cage
Degree of Protection IP20
Depth 110 mm
Height 71 mm
Humidity 5-95%
Material Polycarbonate
Modes of Protection Transverse and Common Modes
Mounting Type TS35 DIN Rail
Number of Lines 1 pair
Operational Temperature -40 to 70 deg C
Rated Current 10 kA (Per Line), 20 kA (Common Mode)
Rated Voltage 180 VDC
Resistance 3.9 Ohm
Response Time <5 ns
Standards and Approvals IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117, AS7708
Tightening Torque 0.5 N-m
Voltage Protection Level 220 V
Weight 70 g
Width 12 mm
