Specifications

Product Type	Combine Signal Line and Power Protector
Brand	Novaris
Series	SLC
Application	Signal, Process Control, Input/Output/Comms
Connection Type	Screw Cage
Lightning Impulse Current Iimp (10/350µs)	5 kA
No. of Lines/Pairs	1 pair
Modes of Protection	Transverse and Common Modes
Rated Current	4.8 kA (Power), 20 kA (Signal)
Rated Voltage	12 V, 6 V
Line Resistance	3.9 Ohm
Response Time	<5 ns
Voltage Protection Level Up	15 V, 45 V
Max. Discharge Current Imax (8/20µs)	10 kA
Max. Continuous Operating Voltage (DC)	8 V DC, 18 V DC
Max. Continuous Operating Voltage (AC)	6 V AC, 12 V AC
Material	Polycarbonate
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	2.5 mm2
Tightening Torque	0.5 N-m
Depth	110 mm
Height	71 mm
Weight	65 g
Width	12 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-21, AS1768, AS/NZS4117, AS7708

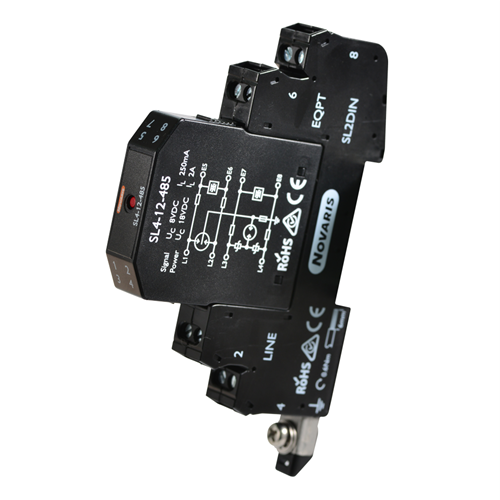

Novaris SL4-12-485 Signal and Power Surge Protection 4.8kA 20kA 12V 6V Screw Cage TS35 IP20
