Specifications

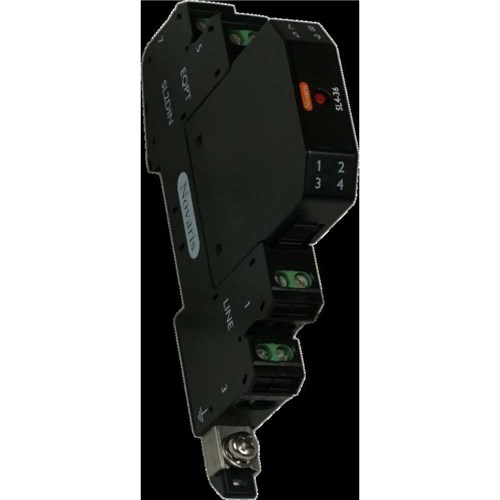

Product Type	High Energy Signal Line Protection
Brand	Novaris
Series	SL4
Application	Signal, Process Control, Input/Output/Comms
Connection Type	Screw Cage
Lightning Impulse Current Iimp (10/350µs)	2.5 kA
No. of Lines/Pairs	2 pair
Modes of Protection	Transverse and Common Modes
Rated Current	10 kA (Per Line), 20 kA (Common Mode)
Rated Voltage	34 VDC
Line Resistance	3.9 Ohm
Response Time	<5 ns
Voltage Protection Level Up	40 V
Max. Discharge Current Imax (8/20µs)	10 kA
Max. Continuous Operating Voltage (DC)	34 V DC
Max. Continuous Operating Voltage (AC)	24 V AC
Material	Polycarbonate
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	2.5 mm2
Tightening Torque	0.5 N-m
Depth	110 mm
Height	71 mm
Weight	55 g
Width	12 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117, AS7708
