Specifications

Product Type	MPU protector
Brand	Novaris
Series	SLD-MPU
Max. Continuous Operating Voltage (AC/DC)	22 V AC, 32 V DC
No. of Lines/Pairs	1
Rated Current	2 A
Rated Voltage	12/32 VAC/VDC
Voltage Protection Level Up	45 V, 350 V
Max. Discharge Current Imax (8/20µs)	10 kA
Mounting Method	TS35 DIN Rail
Operating Temperature	-40°C to 85°C
IP Rating	IP20

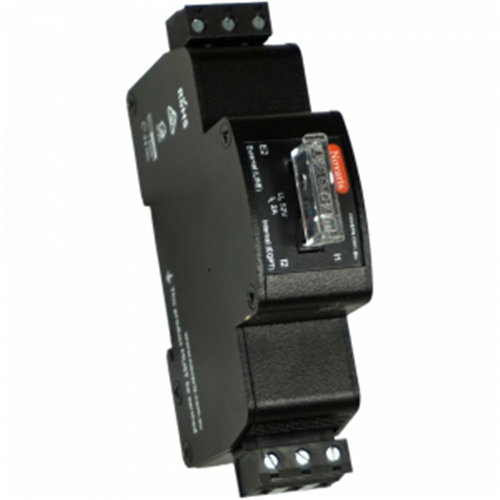

Novaris SLD1-MPU9 Railway Signalling Protector 2A 12/32VAC/DC
