Specifications

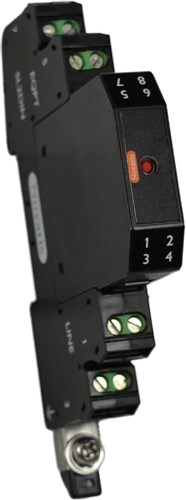

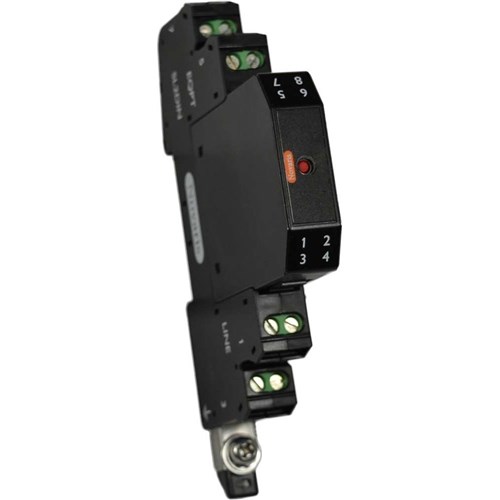

Product Type	High Energy Signal Line Protection
Brand	Novaris
Series	SLH2
Application	Signal, Process Control, Input/Output/Comms
Instantaneous Protection Adjustment Range	2.5 A
Lightning Impulse Current Iimp (10/350µs)	2.5 kA
No. of Lines/Pairs	1 pair
Rated Current	2.5 A
Rated Voltage	12 VDC
Voltage Protection Level Up	30 V
Max. Discharge Current Imax (8/20µs)	10 kA
Max. Continuous Operating Voltage (DC)	16 V DC
Max. Continuous Operating Voltage (AC)	11 V AC
Mounting Method	TS35 DIN Rail
Terminal Size	2.5 mm2
Depth	110 mm
Height	71 mm
Width	12 mm
Operating Temperature	-40°C to 70°C
IP Rating	IP20
