Specifications

Product Type	Signal Surge Protection With Base and Alarm
Brand	NOVARIS
Connection Type	Screw Cage
Instantaneous Protection Adjustment Range	2.5 A
No. of Lines/Pairs	1 pair
Modes of Protection	Transverse and Common Modes
Rated Current	10 kA (Per Line), 20 kA (Common Mode)
Rated Voltage	68 VDC
Line Resistance	0.06 Ohm
Response Time	<5 ns
Voltage Protection Level Up	140 V
Material	Polycarbonate
Mounting Type	TS35 DIN Rail
Tightening Torque	0.5 N-m
Depth	110 mm
Height	71 mm
Weight	55 g
Width	12 mm
Humidity	5-95%
Operating Temperature	-40 to 70 deg C
IP Rating	IP20
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117

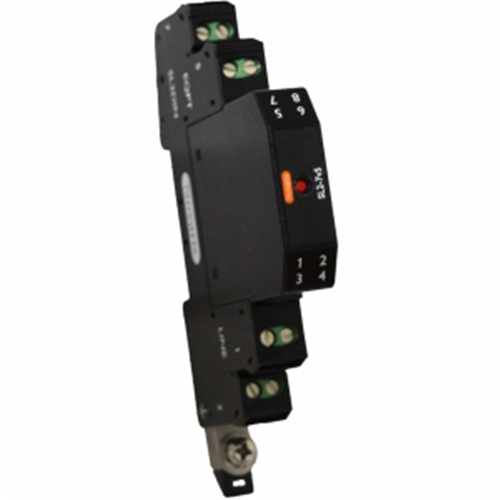

Novaris SLH2-68-RPU Signal Surge Protection With Base and Alarm 10kA 20kA 68VDC Screw Cage TS35 IP20
