Specifications

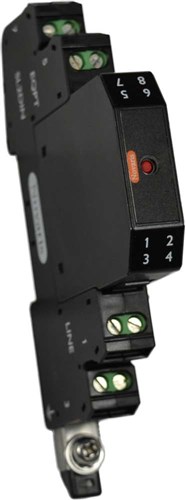

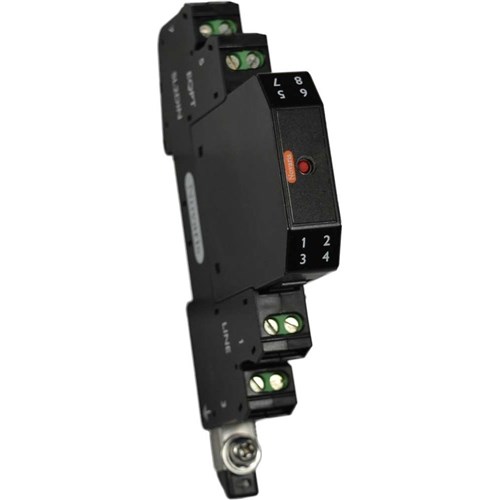

Product Type	Signal Surge Protection With Base and Alarm
Brand	NOVARIS
Connection Type	Screw Cage
Instantaneous Protection Adjustment Range	2.5 A
No. of Lines/Pairs	1 pair
Modes of Protection	Transverse and Common Modes
Rated Current	10 kA (Per Line), 20 kA (Common Mode)
Rated Voltage	68 VDC
Terminal Type	Screw cage
Line Resistance	0.06 Ohm
Response Time	<5 ns
Voltage Protection Level Up	140 V
Material	Polycarbonate
Mounting Type	TS35 DIN Rail
Tightening Torque	0.5 N-m
Depth	110 mm
Height	71 mm
Weight	55 g
Width	12 mm
Humidity	5-95%
Operating Temperature	-40 to 70 deg C
IP Rating	IP20
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117
