Specifications

Product Type	Multi-circuit signal line protectors
Brand	Novaris
Series	SLM
Application	Signal, Process Control, Input/Output/Comms
Connection Type	Series
No. of Lines/Pairs	12
Modes of Protection	Transverse and Common Modes
Rated Current	20 kA
Rated Voltage	34 VDC
Line Resistance	8.2 Ohm
Voltage Protection Level Up	39 V
Max. Discharge Current Imax (8/20µs)	20 kA
Max. Continuous Operating Voltage (DC)	34 V DC
Max. Continuous Operating Voltage (AC)	24 V AC
Mounting Method	Panel
Mounting Type	Panel
Terminal Size	2.5 mm2
Tightening Torque	0.5 N-m
Depth	130 mm
Height	60 mm
Weight	250 g
Width	80 mm
Humidity	5-95%
Operating Temperature	-40°C to 85°C
IP Rating	IP20
Standards and Approvals	IEC61643-21, ITU-T K.44, AS/NZS 1768, IEEE C62.41, UL497B

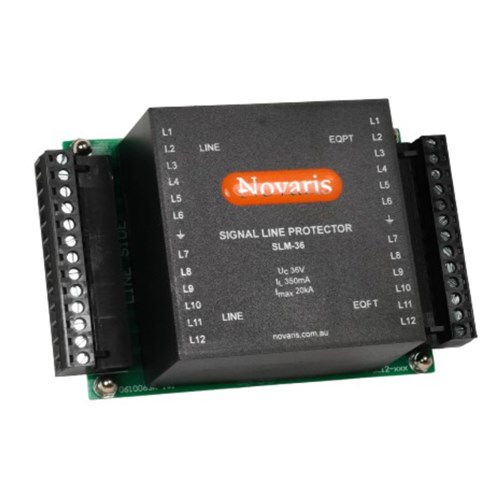

Novaris SLM-36 Multiline Signal Line Protector 20kA 34VDC Panel Mount 128mm W 42mm D 80mm H IP20
