Specifications

Product Type	Threaded Signal Line Protectors
Brand	Novaris
Series	SLT3
Application	Signal, Process Control, Field Instruments
Connection Type	Shunt
Lightning Impulse Current Iimp (10/350µs)	1.25 kA
No. of Lines/Pairs	1 pair + center
Modes of Protection	Transverse and Common Modes
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Voltage	36 VDC
Response Time	<5 ns
Voltage Protection Level Up	75 V
Max. Discharge Current Imax (8/20µs)	5 kA
Max. Continuous Operating Voltage (DC)	34 V DC
Max. Continuous Operating Voltage (AC)	24 V AC
Material	Stainless Steel
Mounting Method	M20 Thread
Mounting Type	M20 x 1.5 Thread
Thread Size	M20 x 1.5
Depth	53 mm
Height	29 mm
Length	53 mm
Weight	165 g
Width	25 mm
Humidity	5-95%
Operating Temperature	-20°C to 40°C
IP Rating	IP67
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd Edition and UL 497B, ITU-T K.44: 2012

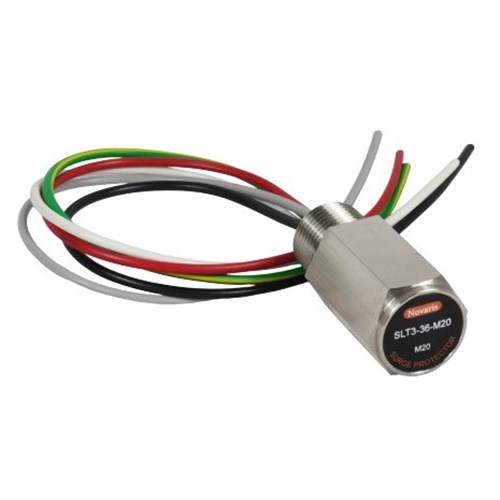

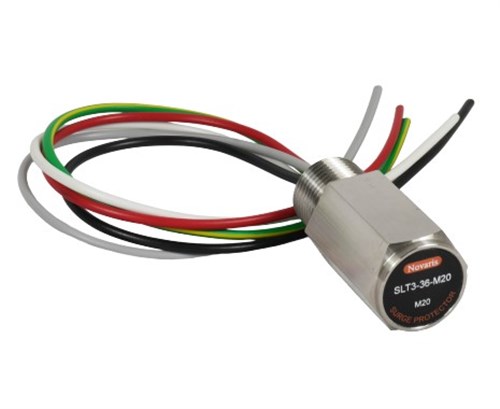

Novaris SLT3-36-M20 Threaded Signal Surge Protector 5kA 10kA 36VDC Shunt M20x1.5 Thread SS IP67
