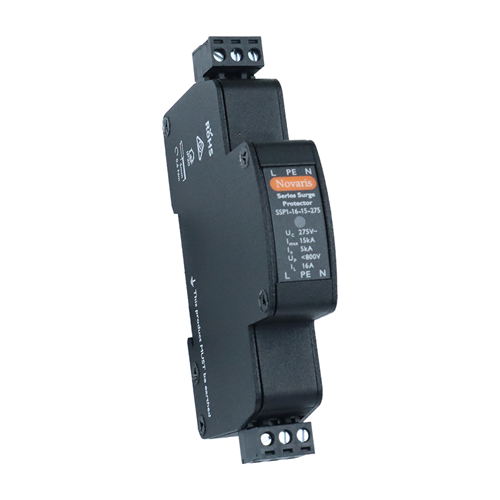

Novaris SSP1-16-15-275 Surge Protector 1 PH 16A 15kA 230VAC TS35 Panel Mounting Metal IP20

Product Code: SSP1-16-15-275

1

Specifications

Product Type	Surge Protector
Brand	NOVARIS
Series	SSP1
Connection Type	Series
Degree of Protection	IP20
Discharge Current	15 kA
Display Type	LED Status
Fuse Rating	16 A
Height	69 mm
Humidity	5-95%
Length	115 mm
Material	Metal
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail, Panel
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	16 A
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Response Time	<5 ns (L-N) <5 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Voltage Protection Level	<800 V
Weight	200 g
Width	18 mm

Documents

IPD Product Catalogue V17

NOVARIS Catalogue

Manual

CAD Blocks & Dimensions

Dimensions

Dimensions

Dimensions
