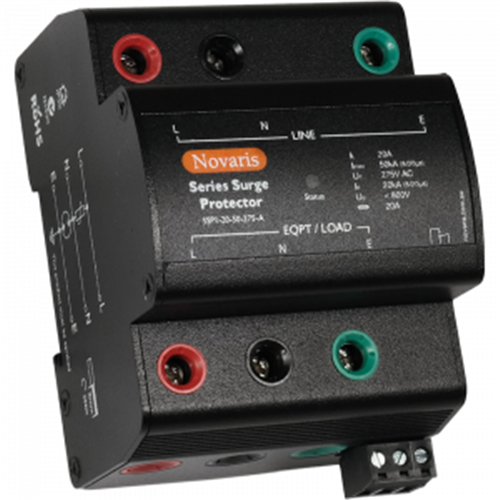

Novaris SSP1-20-45T-275 Surge Protector 1 PH 20A 45kA 230VAC TS35 Aluminium IP20

Product Code: SSP1-20-45T-275

1

Specifications

Product Type	Surge Protector
Brand	NOVARIS
Degree of Protection	IP20
Depth	115 mm
Discharge Current	45 kA
Display Type	LED Power
Fuse Rating	20 A
Height	69 mm
Humidity	5-95%
Interrupt Rating	100 A
Material	Aluminium
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	20 A
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Response Time	<5 ns (L-N), <100 ns (N-PE)
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, EEE 62.41.2
Tightening Torque	0.5 N-m
Voltage Protection Level	<800 V
Weight	200 g
Width	18 mm
