Specifications

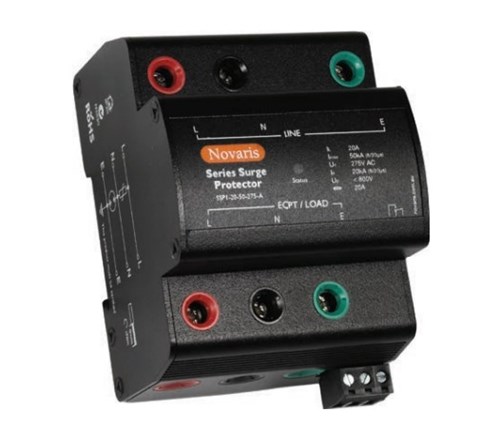

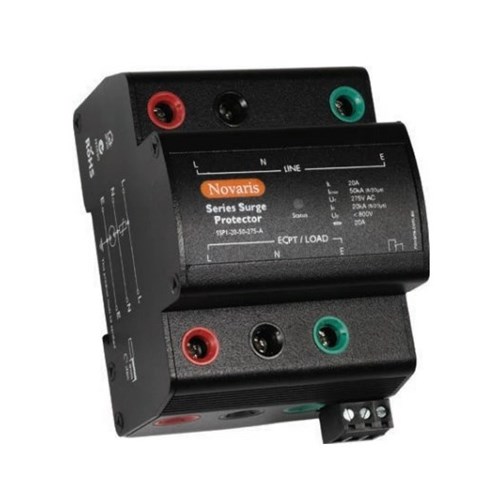

Product Type	Surge Protector
Brand	NOVARIS
Series	SSP1
Connection Type	Series
Lightning Impulse Current Iimp (10/350µs)	15 kA
No. of Phases	1
Breaking Capacity	100 A
Modes of Protection	L-N, L-PE, N-PE
Rated Current	63 A
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Response Time	<5 ns (L-N), <100 ns (N-PE)
Voltage Protection Level Up	<800 V
Display	LED Status
Material	Metal
Mounting Type	TS35 DIN Rail, Panel
Depth	95 mm
Height	69 mm
Weight	395 g
Width	72 mm
Humidity	5-95%
Operating Temperature	-40 to 70 deg C
IP Rating	IP20
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
