Specifications

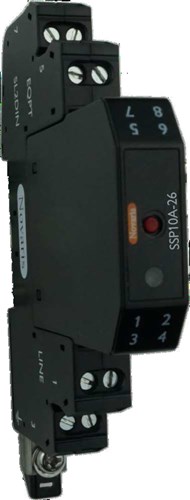

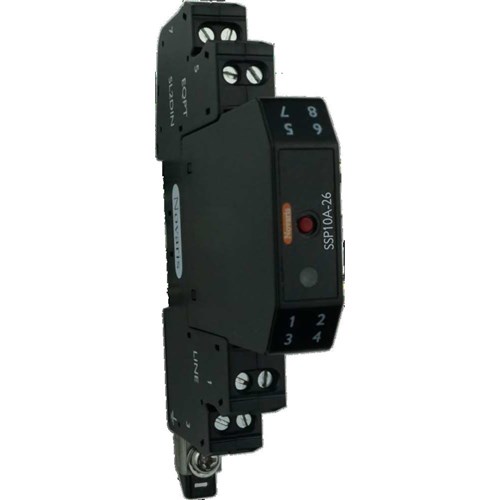

Product Type	Surge Protector With Base
Brand	NOVARIS
Connection Type	Series
No. of Lines/Pairs	1 pair
Modes of Protection	Transverse and Common Modes
Rated Current	7.5 kA (Per Line), 15 kA (Common Mode)
Rated Voltage	26 VDC
Line Resistance	0.02 Ohm
Nominal Discharge Current (8/20µs)	15 kA
Response Time	<5 ns
Voltage Protection Level Up	95 V
Material	Polycarbonate
Mounting Type	TS35 DIN Rail
Tightening Torque	0.5 N-m
Depth	110 mm
Height	71 mm
Weight	70 g
Width	12 mm
Humidity	5-95%
Operating Temperature	-40 to 70 deg C
IP Rating	IP20
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS 4117
