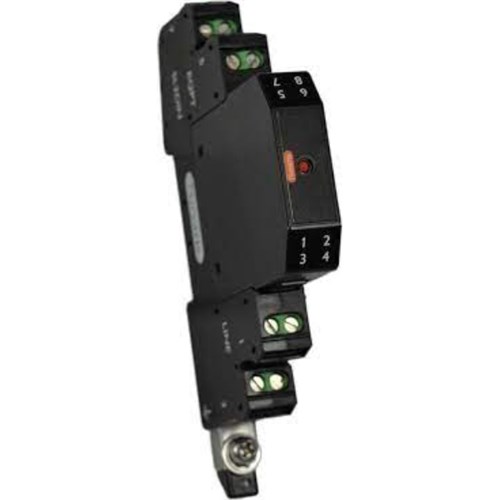

Novaris SSP10A-38 Surge Protector 7.5kA 15kA 38VDC TS35 IP20

Product Code: SSP10A-38

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Surge Protector
Brand NOVARIS
Series SSP10A
Capacitance 13 nF
Connection Type Series
Degree of Protection IP20
Depth 110 mm
Height 71 mm
Humidity 5-95%
Material Polycarbonate
Modes of Protection Transverse and Common Modes
Mounting Type TS35 DIN Rail
Number of Lines 1 pair
Operational Temperature -40 to 70 deg C
Rated Current 7.5 kA (Per Line), 15 kA (Common Mode)
Rated Short Circuit Current 10 A
Rated Voltage 38 VDC
Resistance 0.02 Ohm
Response Time <5 ns
Standards and Approvals IEC 61643-21, AS1768, UL497, A, B, AS/NZS 4117
Tightening Torque 0.5 N-m
Voltage Protection Level 155 V
Weight 55 g
Width 12 mm
