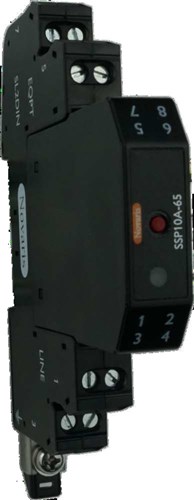

Novaris SSP10A-65 Surge Protector With Base 7.5kA 15kA 15kA 65VDC TS35 IP20

Product Code: SSP10A-65

  • Surge protection for 65 VDC systems
  • Handles up to 15 kA discharge current
  • Compact design: 12 mm width
  • Quick response time under 5 ns
  • Fits TS35 DIN Rail mounting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Surge Protector With Base
Brand NOVARIS
Capacitance 9 nF
Degree of Protection IP20
Depth 110 mm
Discharge Current 15 kA
Height 71 mm
Humidity 5-95%
Material Polycarbonate
Modes of Protection Transverse and Common Modes
Mounting Type TS35 DIN Rail
Number of Lines 1 pair
Operational Temperature -40 to 70 deg C
Rated Current 7.5 kA (Per Line), 15 kA (Common Mode)
Rated Short Circuit Current 10 A
Rated Voltage 65 VDC
Resistance 0.02 Ohm
Response Time <5 ns
Standards and Approvals IEC 61643-21, AS1768, UL497, A, B, AS/NZS 4117
Tightening Torque 0.5 N-m
Voltage Protection Level 160 V
Weight 55 g
Width 12 mm

Description

<p>When it comes to safeguarding your electrical systems, selecting the right surge protection device (SPD) is crucial. This particular SPD offers a robust solution for industrial and commercial applications, ensuring your equipment remains protected against unexpected voltage spikes.</p><p>Designed to handle a rated voltage of 65 VDC, this SPD provides reliable protection with a rated current capacity of 7.5 kA per line and an impressive 15 kA in common mode. The device&amp;#39;s response time is under 5 nanoseconds, making it exceptionally quick in reacting to surges, thereby minimizing potential damage to connected equipment.</p><p>Installation is straightforward with its TS35 DIN rail mounting type, which allows for secure placement within control panels or other suitable locations. Measuring just 12 mm in width, 71 mm in height, and 110 mm in depth, this compact SPD fits seamlessly into various setups without taking up excessive space.</p><p>The SPD operates efficiently across a wide temperature range from -40&amp;#176;C to 70&amp;#176;C and can withstand humidity levels between 5% and 95%. Its polycarbonate construction ensures durability while maintaining a lightweight profile at only 55 grams. With an IP20 degree of protection, it’s designed for indoor use where exposure to dust or water ingress is minimal.</p><p>Complying with several standards including IEC 61643-21, AS1768, UL497 A/B as well as AS/NZS 4117 ensures that this product meets rigorous safety and performance criteria expected in professional settings. The device also features transverse and common modes of protection across one pair of lines.</p><p>For those concerned about installation specifics, the tightening torque requirement stands at a precise 0.5 N-m. Additionally, the discharge current capability reaches up to 15 kA while maintaining low resistance at just 0.02 Ohms—factors that contribute significantly towards efficient energy dissipation during surge events.</p><p>This SPD also boasts a capacitance value of around 9 nF along with a voltage protection level set at approximately 160 V—parameters that further enhance its protective capabilities by effectively clamping overvoltages before they reach sensitive components downstream.</p><p>In summary, if you are looking for an effective surge protection solution that combines high-performance specifications with ease-of-installation features suitable for Australian conditions—you may find this product aligns well with your technical requirements given its comprehensive standard compliance coupled alongside practical design elements tailored towards professional environments.</p>
