Specifications

Product Type	Series Surge Protectors
Brand	Novaris
Series	SSP3
Application	Power, Control Cabinets and Final Sub Boards
Connection Type	Series
Max. Backup Fuse	10 A
Max. Continuous Operating Voltage (AC/DC)	255 V AC, 275 V AC
Max. Load Current	10 A
No. of Phases	3
No. of Phases/Lines	3
Breaking Capacity	100 A
Modes of Protection	L-N, L-PE, N-PE
Rated Current	10 A
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Nominal Discharge Current (8/20µs)	10 kA
Response Time	<5 ns (L-N), <100 ns (N-PE)
Voltage Protection Level Up	<1700 V
Max. Discharge Current Imax (8/20µs)	10 kA
Short Circuit Current Rating	25 kA
Alarm Contact	Thermal failure
Nominal Discharge Current Inom (8/20µs)	5 kA
Display	LED Status per Phase
Material	Metal
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail, Panel
Terminal Size	2.5 mm2
Depth	95 mm
Height	69 mm
Weight	200 g
Width	126 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002

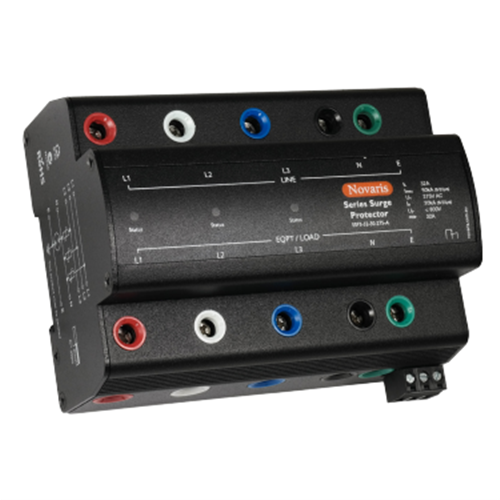

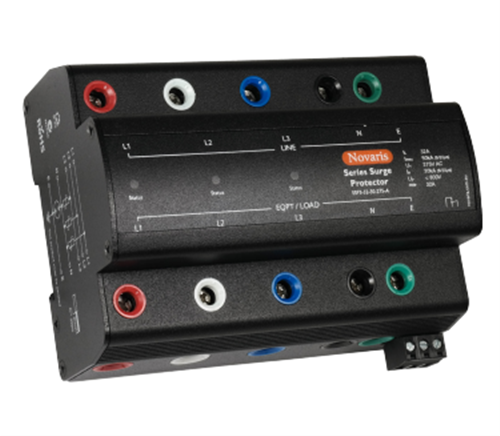

Novaris SSP3-10-10-275 Surge Protector 3 PH 10A 10kA 230VAC TS35 Panel Mounting Metal IP20
