Specifications

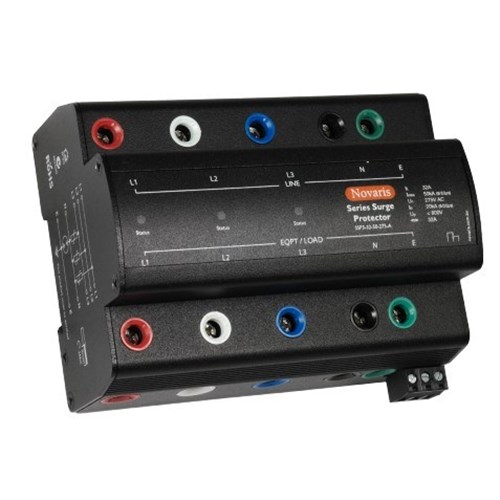

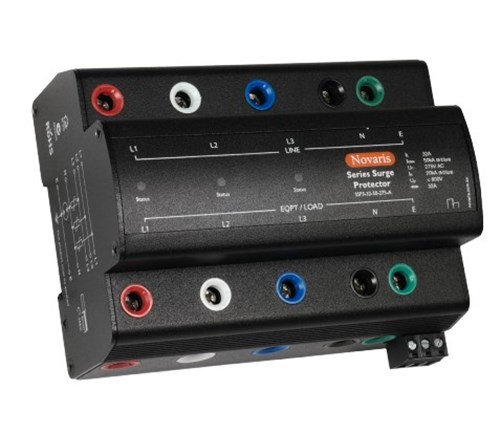

Product Type	Type-2+3 Compact Surge Protector
Brand	NOVARIS
Series	SSP3
Connection Type	Series
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Status per Phase
Fuse Rating	32 A
Height	69 mm
Humidity	5-95%
Interrupt Rating	100 A
Material	Metal
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail, Panel
Operational Temperature	-40 to 70 deg C
Phase	3
Rated Current	32 A
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Response Time	<5 ns (L-N), <100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Voltage Protection Level	<800 V
Weight	750 g
Width	126 mm
