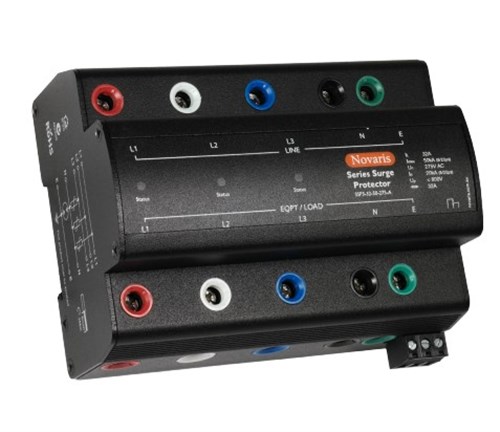

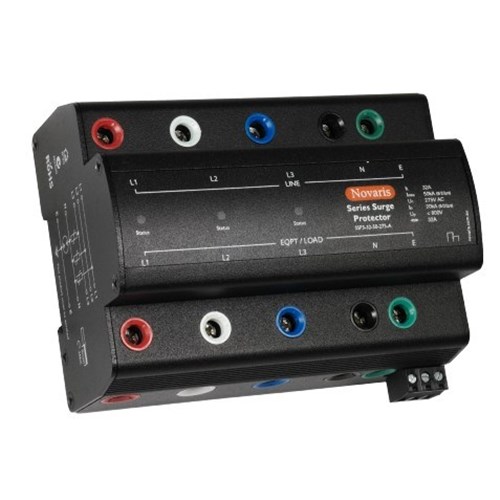

Novaris SSP3-32-50-275-A Surge Protector 3-P 3 PH 32A 50kA 230VAC TS35 Panel Mounting Metal IP20

Product Code: SSP3-32-50-275-A

1

Specifications

Product Type	Surge Protector
Brand	NOVARIS
Series	SSP3
Connection Type	Series
Degree of Protection	IP20
Depth	95 mm
Discharge Current	50 kA
Display Type	LED Status per Phase
Fuse Rating	32 A
Height	69 mm
Humidity	5-95%
Interrupt Rating	100 A
Material	Metal
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail, Panel
Number of Poles	3
Operational Temperature	-40 to 70 deg C
Phase	3
Rated Current	32 A
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Response Time	<5 ns (L-N), <100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Voltage Protection Level	<800 V
Weight	690 g
Width	126 mm

Documents

IPD Product Catalogue V17

NOVARIS Catalogue

CAD Blocks & Dimensions

Dimensions

Dimensions

Dimensions
