Specifications

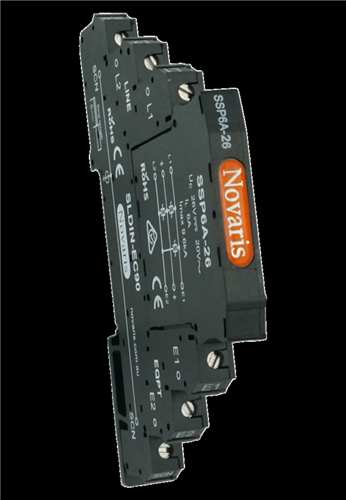

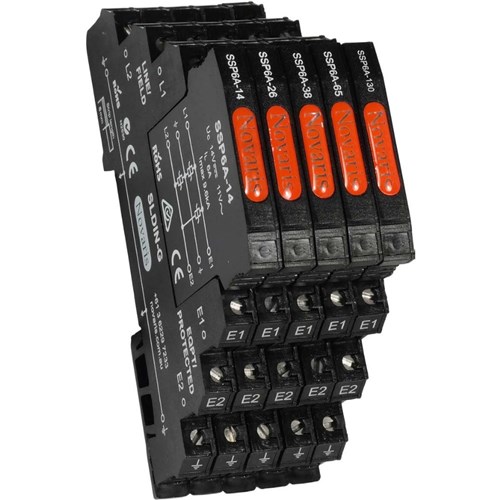

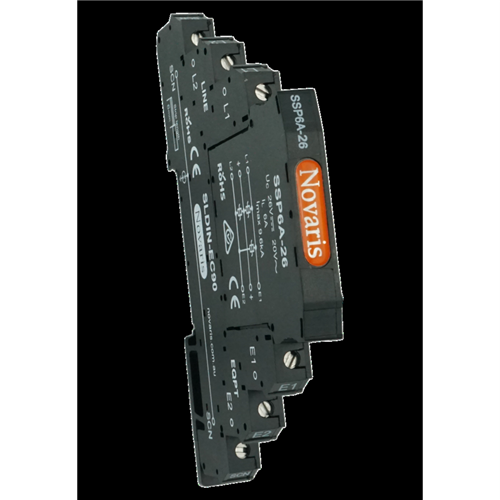

Product Type	Surge Protector with Base
Brand	Novaris
Series	SSP6A
Application	Signal, Process Control, Input/Output/Power
Connection Type	Series
Max. Continuous Operating Voltage (AC/DC)	20 V AC, 26 V DC
Max. Load Current	6 A
No. of Lines/Pairs	1 pair
No. of Phases/Lines	1 pair
Modes of Protection	Transverse and Common
Rated Current	4.8 kA (Per Line), 9.6 kA (Common Mode)
Rated Voltage	26 VDC
Line Resistance	0.02 Ohm
Response Time	<5 ns
Voltage Protection Level Up	65 V, 380 V, 620 V
Max. Discharge Current Imax (8/20µs)	5 kA
With Base	EC90 Indirect Earthing
Material	Polycarbonate
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	2.5 mm2
Tightening Torque	0.5 N-m
Depth	102 mm
Height	68 mm
Weight	35 g
Width	7 mm
Humidity	5-95%
Operating Temperature	-40 to 70 °C
IP Rating	IP20
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1499 3rd Edition and UL 497B, ITU-T K.44: 2012, AS/CA S008:2010, AS/NZS 4117:1999
