Specifications

Product Type	Track circuit protector
Brand	Novaris
Series	TCP-2.5
Connection Type	Series
Lightning Impulse Current Iimp (10/350µs)	2.5 kA
Max. Continuous Operating Voltage (AC/DC)	250 V AC, 320 V DC
No. of Lines/Pairs	1 pair
Modes of Protection	Transverse and Common Modes
Rated Current	20 kA
Rated Voltage	350 VDC
Response Time	100 ns
Voltage Protection Level Up	690 V, 1010 V
Max. Discharge Current Imax (8/20µs)	20 kA
Alarm Contact	Normally closed
Material	Polycarbonate
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	2.5 mm2
Depth	110 mm
Height	71 mm
Width	12 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20

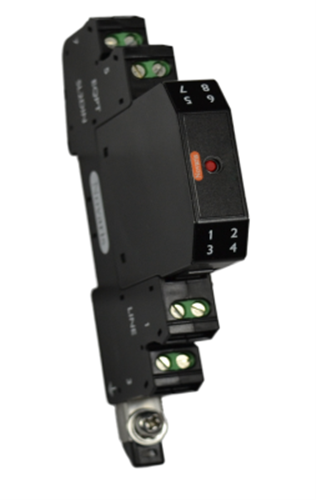

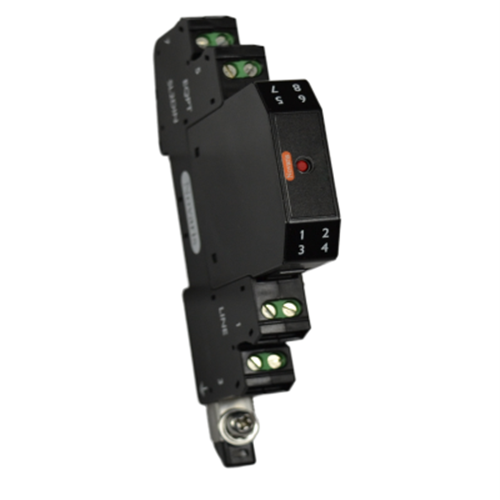

Novaris TCP-2.5-40-350 Track Circuit Protector With Base 20kA 350VDC TS35 12mm W 110mm D 71mm H Polycarbonate IP20
