Specifications

Product Type	Motion Control Unit
Brand	Panasonic
Series	FP7
Development Software	Control Motion Integrator/Control FPWIN GR7
Digital Inputs	16
Digital Outputs	16
Input Type	Current
Output Type	Current
Power Consumption	180 mA appox
Response Time	147 ms
Mounting Method	DIN Rail
Vibration Resistance acc. To IEC/EN 60068-2-6	5-8.4 Hz
Depth	80 mm
Height	90 mm
Width	28 mm
Humidity	10-95%
Storage Temperature	-40 to +70 ?
Operating Temperature	0 to +55 ?
Ethernet Port Speed	100 Mbps
Ethernet Ports	1
Expandable Communications	Yes
Hazardous Location Ratings	PD 2
Compliance Standards	CE, UL, KC

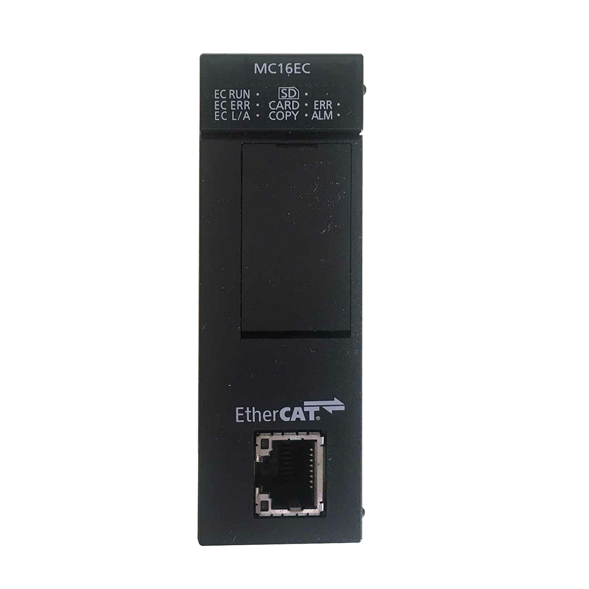

Panasonic AFP7MC16EC Motion Control Unit
