Specifications

Product Type	Compact Programmable Display
Brand	Panasonic
Series	GT Series
Development Software	Terminal GTWIN (Ver. 2.97 or later)
Channel Isolation	Transformer-isolated power supply
Input Ratings	21.6 to 26.4 V DC
Communication Ports	RS-232-C
Power Consumption	2.4 W
Rated Power	2.4 W
Rated Voltage	21.6-26.4 VDC
Supply Voltage	24 V DC
Display	STN Monochrome LCD
Display Colour	2 colors (black/white)
Light Colour	White, Pink, Red
Mounting Method	Panel mounting
Depth	33.8 mm
Height	92.2 mm
Width	110.0 mm
Panel Cut-Out Size	99.2 mm x 85.2 mm
Display Size	3.5 inch
Storage Temperature	–20 to 60 °C
Operating Temperature	0 to 50 °C
IP Rating	IP65
Serial Ports	1
USB Port	1
Supported Serial Protocols	Panasonic FP Series, General-purpose Serial, and Modbus RTU
Touch Type	Analog touch
Compliance Standards	CE (EMC/RoHS), UKCA, UL/c-UL (File E96300, UL508)

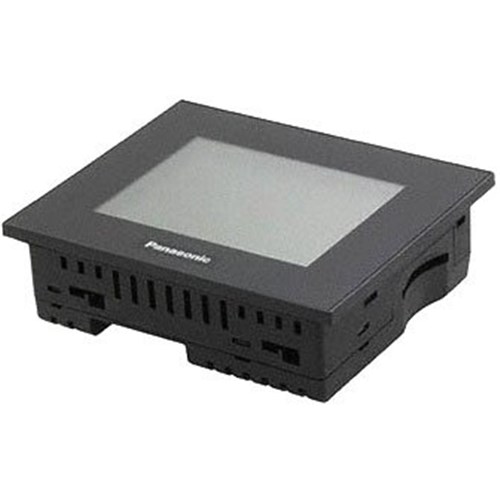

Panasonic AIG05MQ02D Compact Programmable Display 3.5 in STN Monochrome LCD 21.6-26.4VDC
