Specifications

Product Type	Compact Programmable Display
Brand	Panasonic
Series	GT Series
Development Software	Terminal GTWIN (Ver. 2 or Ver. 3)
Channel Isolation	Transformer-isolated power supply
Input Ratings	21.6 to 26.4 V DC
Communication Ports	RS422 / RS485
Power Consumption	1.7 W
Rated Power	1.7 W
Rated Voltage	21.6-26.4 VDC
Supply Voltage	24 V DC
Memory Interface	RS-422/RS-485
Display	TFT Monochrome LCD (Black/White)
Display Colour	2 colors (black / white, 8-gray scale)
Mounting Method	Panel mounting
Depth	30 mm
Height	74 mm
Width	146 mm
Panel Cut-Out Size	139 mm x 67 mm
Display Size	4.6 inch
Storage Temperature	–20 to 60 °C
Operating Temperature	0 to 50 °C
IP Rating	IP67
Serial Ports	1
USB Port	1
Supported Serial Protocols	Panasonic FP Series, General-purpose Serial, and Modbus RTU
Touch Type	Analog touch
Compliance Standards	CE (EMC/RoHS), UKCA, UL/c-UL (File E96300, UL508)

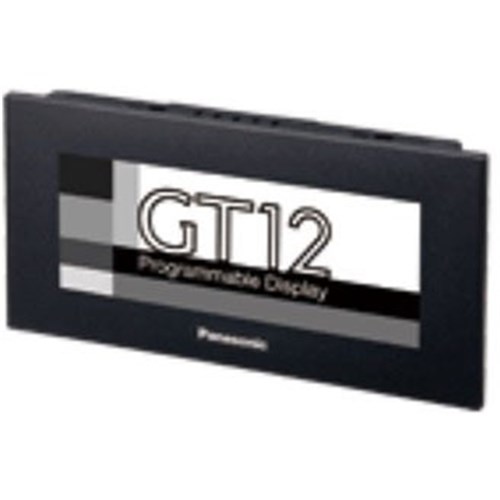

Panasonic AIG12GQ14D Compact Programmable Display 4.6 in TFT Monochrome LCD (Black/White) 21.6-26.4VDC
